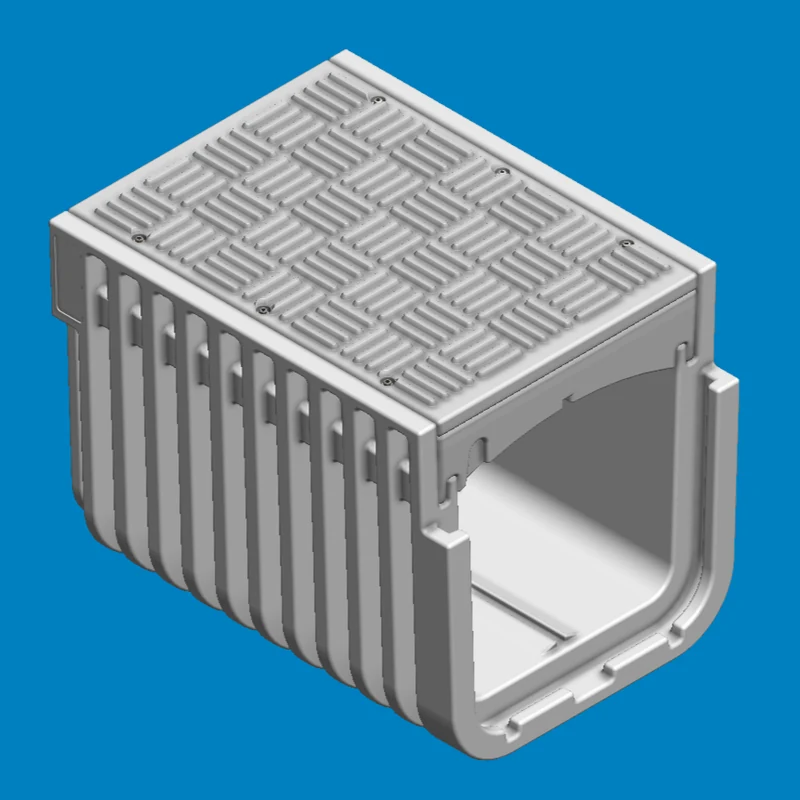

Straight polymer troughs
The individual straight trough weighs 28 kg, excluding separate lid and support components. Nominal width 600 mm, height 600 mm and straight-section length 1,000 mm; check the drawing for detailed geometry.
Product range
Polymer trough modules
Straight runs, bends, branches and crossings connect to make a route that fits your project.
Trough modules
Every turn is part of one system.
Build from straight sections and bring in bends, branches, crossings and blanking plates where the layout demands them. The modules can be combined into a connected route, then extended as the site changes.
Share a route drawing with us to confirm the correct arrangement, connections, cover choice and installation detail.
Explore the range
A route for the real site.
Explore straight troughs and a broad choice of angled, three-way, four-way and multi-directional configurations.

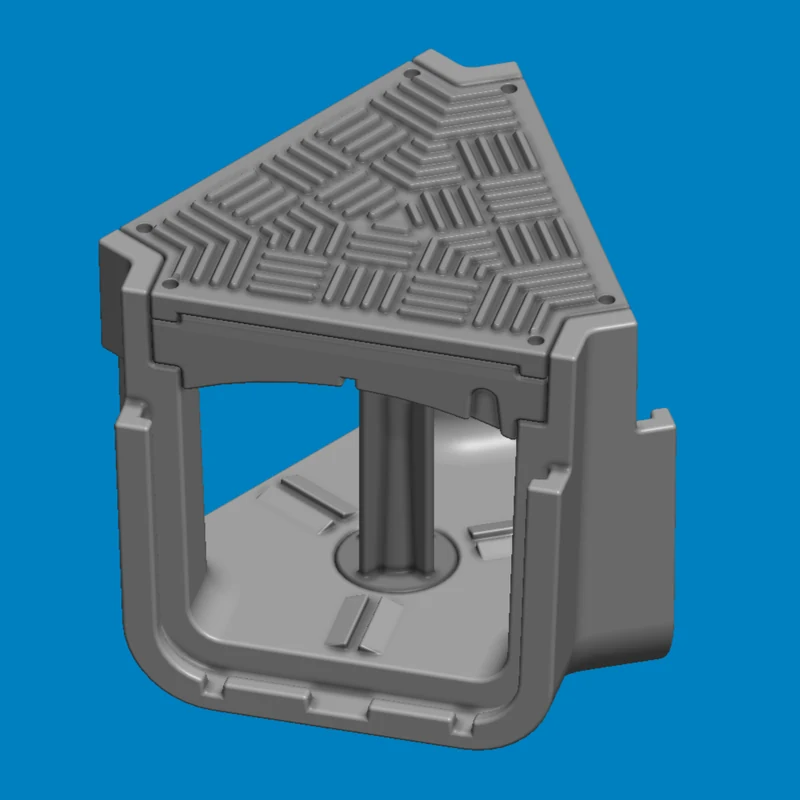

120° three-way trough solution
A branching module for a three-way cable layout with a 120° arrangement.

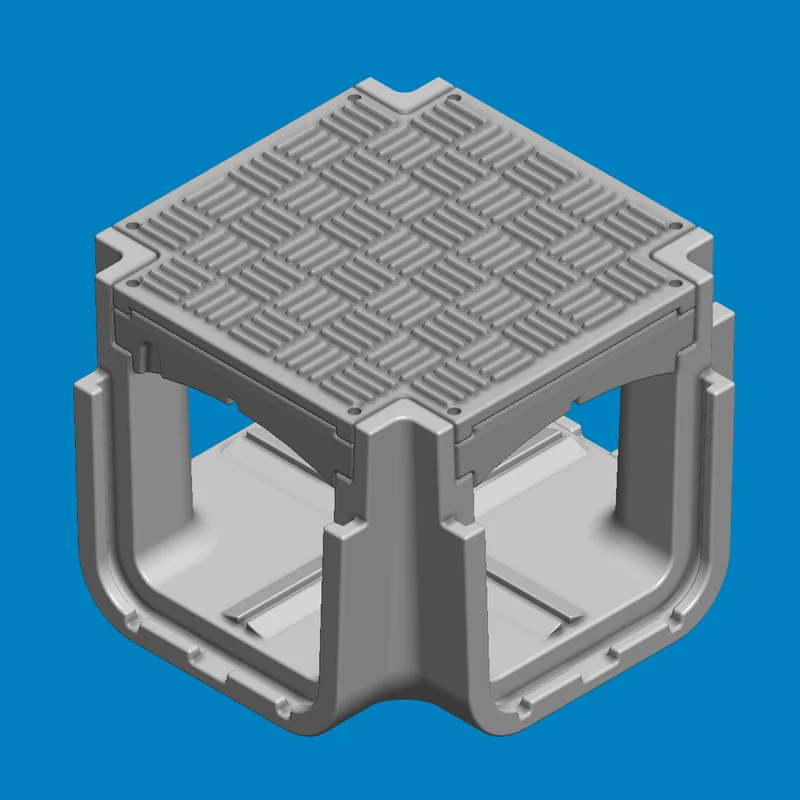

90° four-way trough solution
A four-way crossing module for cable routes that meet at right angles.

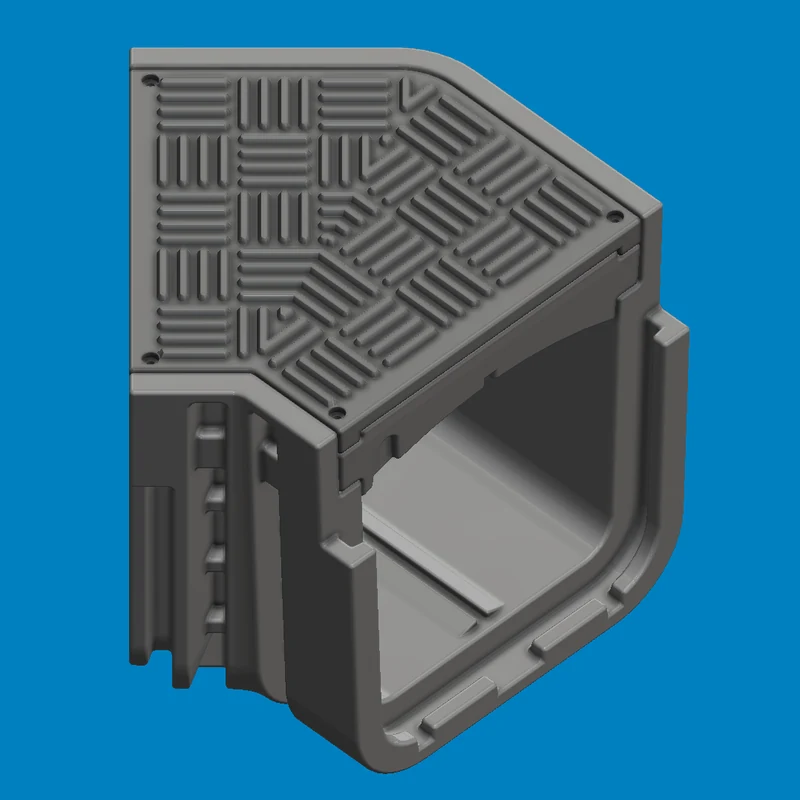

45° trough solution with straights
A shallow direction change integrated with straight sections for a controlled route.

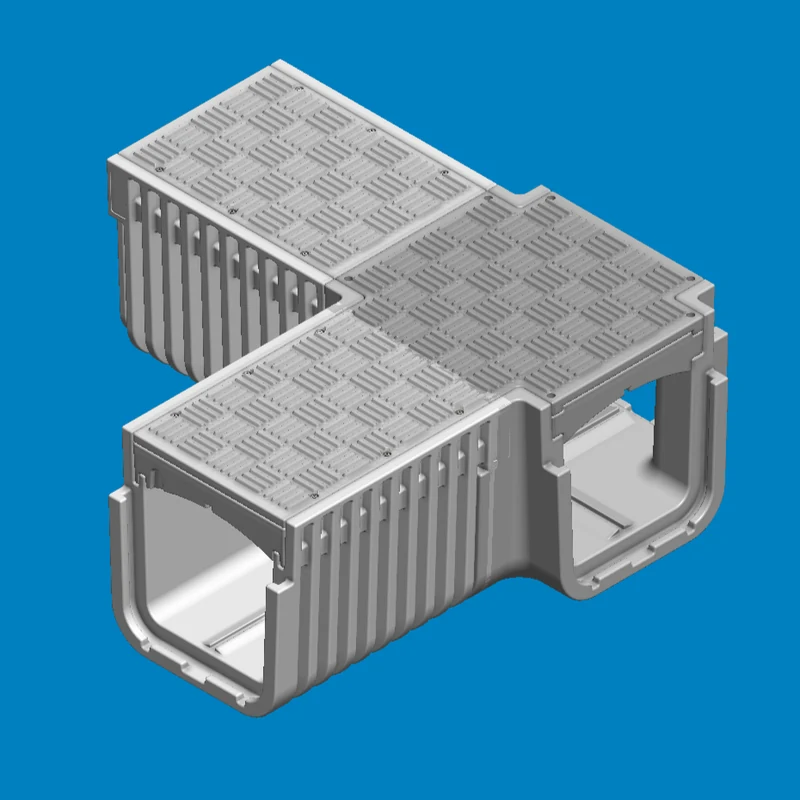

90° trough solution with straights
A right-angle change of direction connected into a straight cable run.

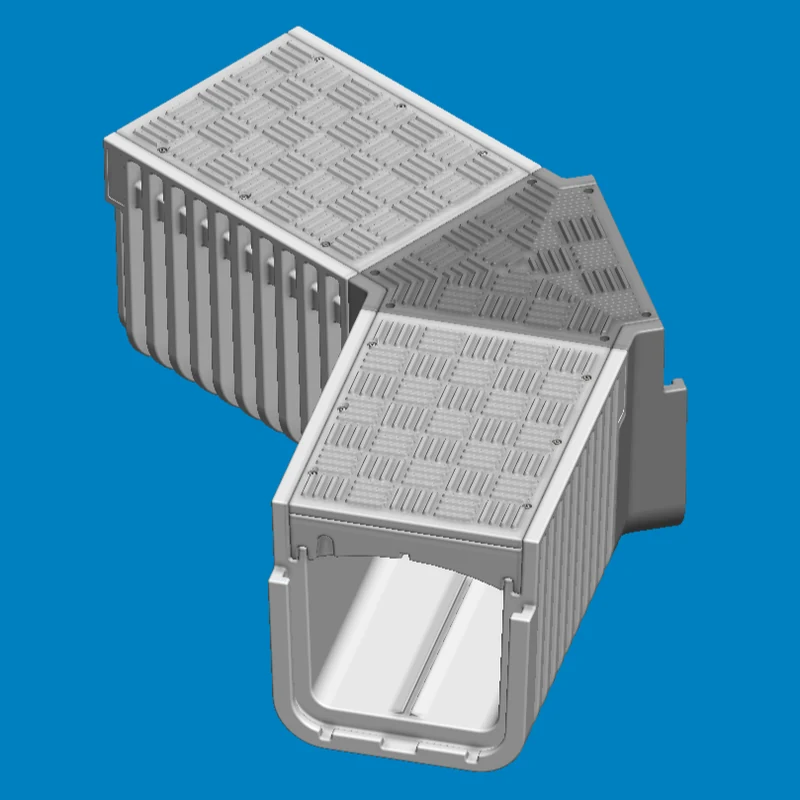

120° three-way solution with straights
A three-way branch with adjoining straight runs for a connected layout.

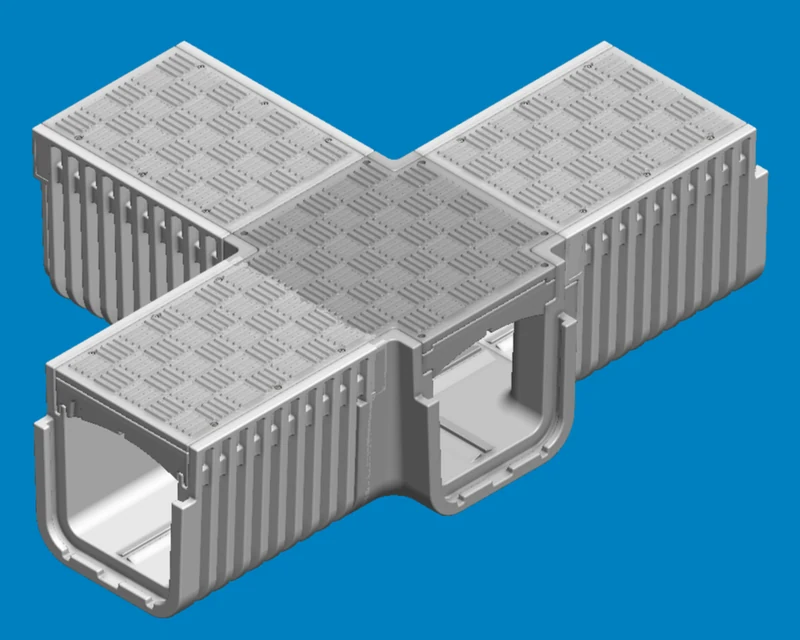

Three-way 90° solution with straights
A right-angle branch designed to connect with straight trough sections.

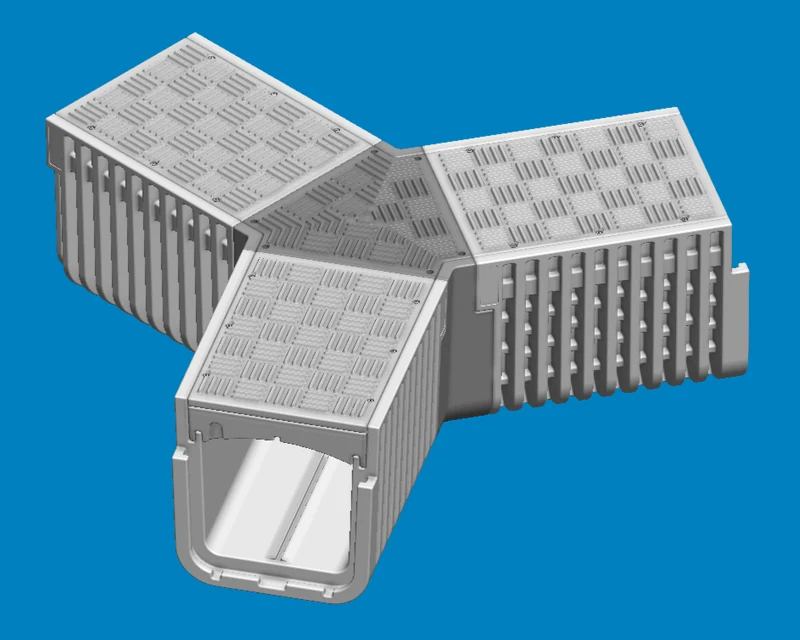

Three-way 45° solution with straights
A three-way junction with an angled branch to support tighter route geometry.

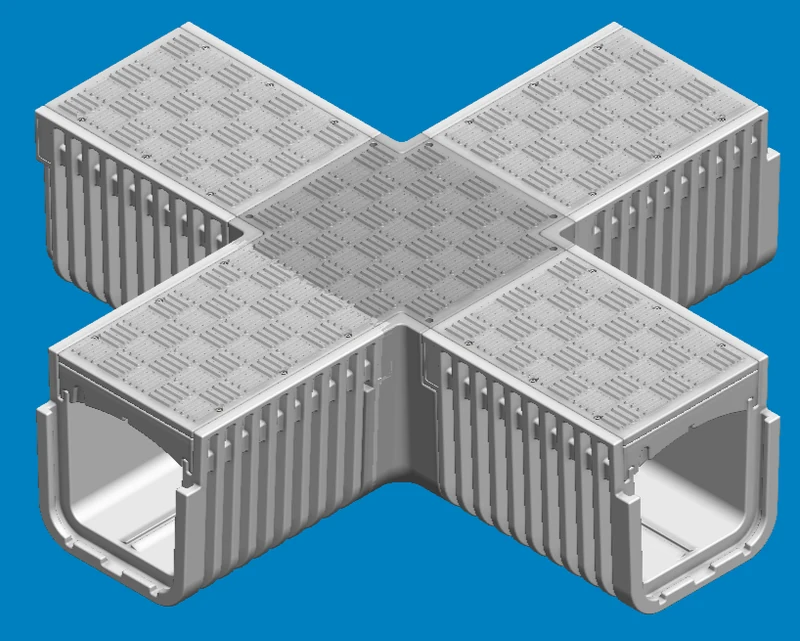

90° four-way solution with straights
A four-way crossing arranged with straight connections on each side.

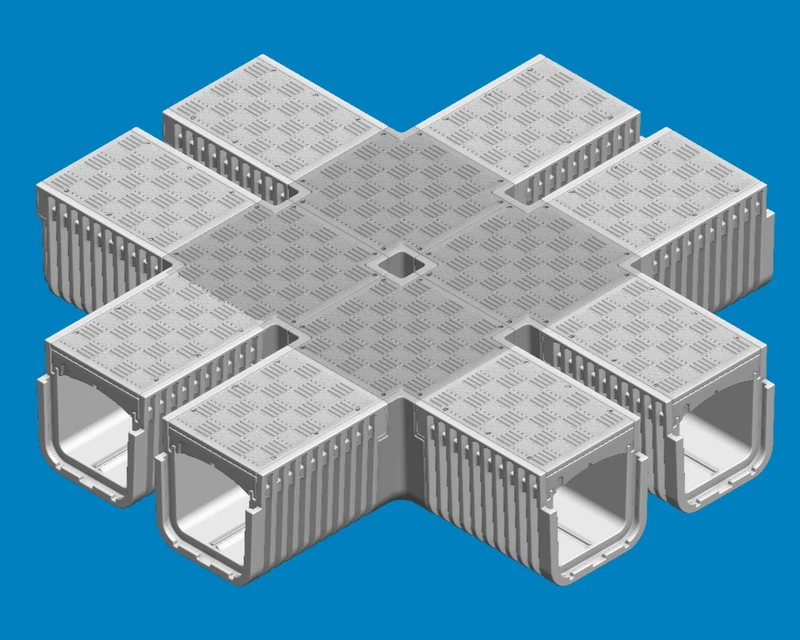

Eight-way 90° solution with straights
A multi-directional arrangement for cable routes with several connected runs.

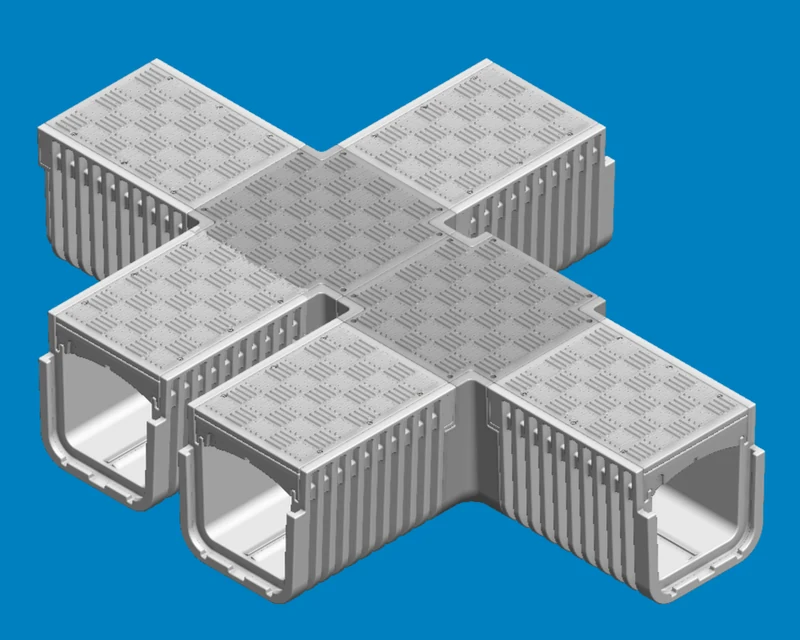

90° adaptable solution with straights
A configurable right-angle layout. Unused exits can be closed with compatible blanking plates.

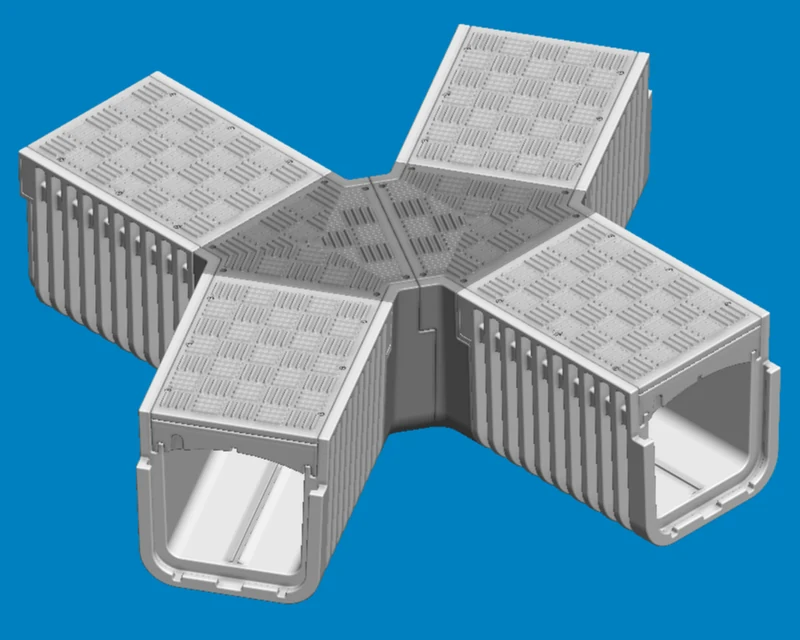

Angled four-way polymer trough
A four-way angled junction for routes that need direction changes in limited space.

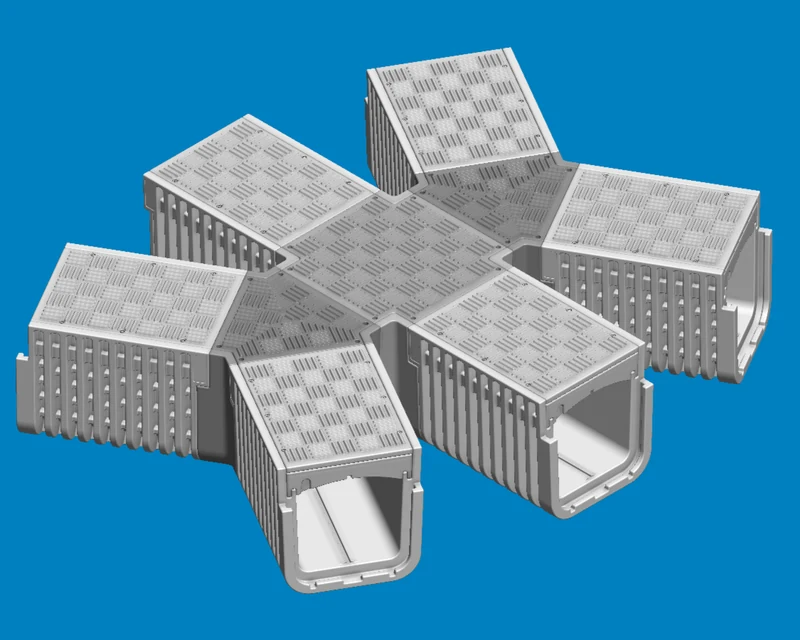

Six-way angled solution with straights
A larger branching arrangement for complex cable layouts and multiple connected routes.

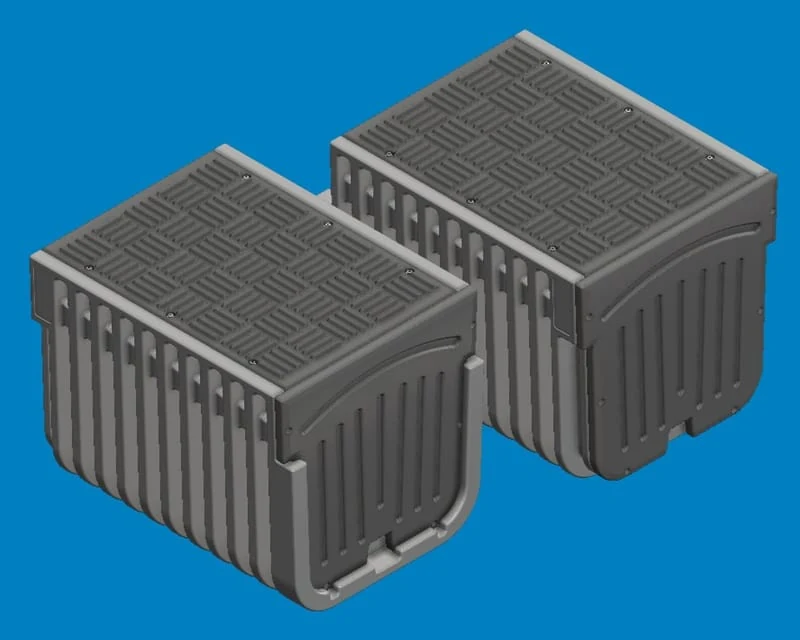

Polymer blanking plates
Close unused module apertures to complete the chosen route and help limit unwanted ingress.
Component information
Individual component weights.
Use the component weights to plan handling and quantities for your chosen arrangement.
| Component | Individual weight |
|---|---|
| Cable Trough Support Lid | 8 kg |
| Straight Cable Trough | 28 kg |
| 4 Way Base | 24 kg |
| 4 Way Int Lid | 13 kg |
| End Plate | 7 kg |
| Centre Post | 4.50 kg |
28 kg straight trough
The straight cable trough weighs 28 kg as an individual component. This excludes any separate lid, support lid, end plate or other items. A complete route weight depends on the modules and covers selected.
Check the product drawings
Compatible components
The right module. The right connection.
Individual components work best as a planned system. Cover selection, loading, cable capacity, ground conditions and future access all affect the route.
- Send your route plan and approximate lengths
- Identify bends, branches and crossing points
- Tell us where unused exits need closing
Start a conversation
Let’s plan your cable route.
Send your route plan, loading needs and site details. We’ll help you identify the right modules and covers.
